Air Disc Brake Actuators (ADB): High-Output Technology
Next-generation air disc brake actuators delivering superior clamping force, reduced brake fade, and longer pad life. Direct replacement for Bendix, Haldex, Meritor, and WABCO. HOT Technology inside. Factory-direct pricing.
Optimized thermal performance
Shorter stopping distances
Drop-in compatibility
Direct drop-in replacements
What Is an Air Disc Brake Actuator?

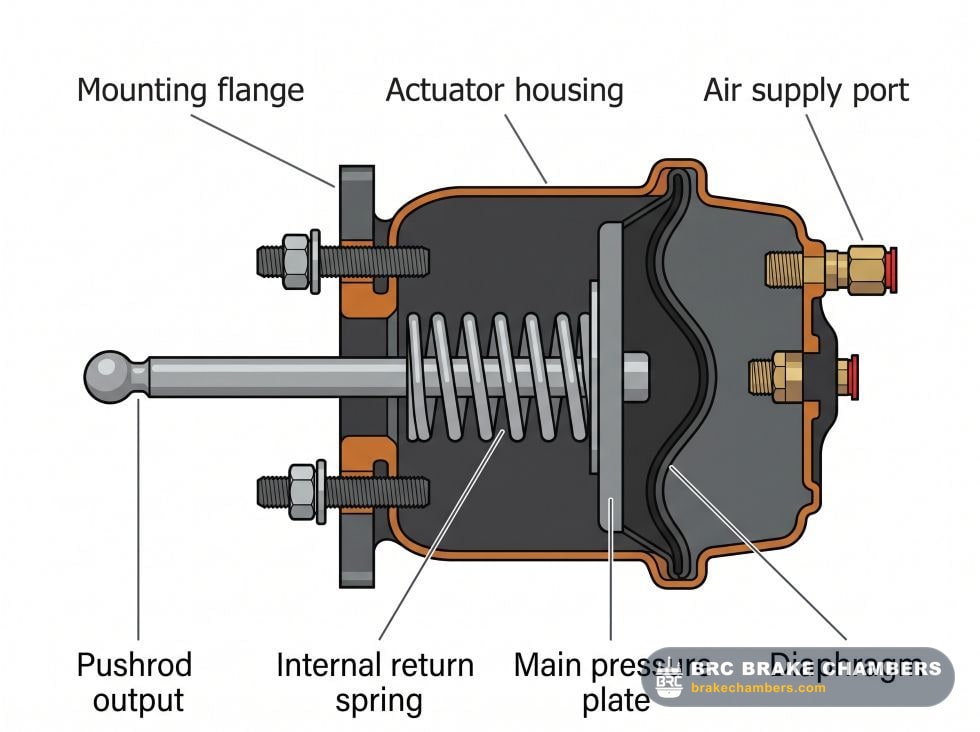

An air disc brake actuator (sometimes called an ADB chamber or air disc chamber) is a pneumatic device that converts air pressure into linear mechanical force to activate disc brake calipers. Unlike traditional S-cam drum brake chambers, which use a rotating S-cam to push brake shoes outward, an ADB actuator pushes a piston or lever directly against the brake caliper.
This direct-force design delivers faster response, more consistent pad pressure, and shorter stopping distances than drum brakes. Air disc brakes are now standard equipment on most new heavy-duty trucks and transit buses. BRC manufactures a full range of commercial air disc brake actuators, serving as direct OEM replacements for Bendix, Haldex, Meritor, and WABCO part numbers.
1. Type 16 & Type 18/24 Air Disc Brake Actuators
Built specifically for front steer axles and lightweight commercial applications. Our Type 16 & 18 ADB Actuators integrate seamlessly with industry-standard calipers (including Bendix ADB22X, WABCO PAN/MAX, and Knorr-Bremse), delivering zero brake fade, instant application speeds, and high thermal resistance.
2. Type 20/24 High-Output ADB Combination Actuators
The most prevalent air disc brake spring chamber specified on modern Class 8 tractors and trailers. BRC Type 20/24 ADB Actuators incorporate our proprietary HOT (High Output Technology) design and synthetic high-temp grease pack to withstand extreme caliper heat while maintaining full FMVSS-121 clamping force.
3. Heavy-Duty Type 24/24 ADB Chambers
Engineered for severe-duty and high-capacity hauling operations. Our Type 24/24 ADB Chambers provide equal 24 sq. in. service and parking outputs, validated under rigorous 1-million cycle life tests to ensure flawless fail-safe parking spring deployment under maximum gross vehicle weight ratings.
4. Maximum-Torque Type 24/30 ADB Actuators
The ultimate solution for extreme rear-axle holding power on steep grade parking. BRC Type 24/30 ADB Actuators combine a 24 sq. in. service diaphragm with an oversized 30 sq. in. parking spring section, preventing rollaways on heavy logging, refuse, and oversized equipment trailers.
Air Disc Brake Actuator FAQs
Consistent Linear Force.
S-Cam Rotation
Traditional drum brakes use the pushrod to rotate an S-cam, which pushes brake shoes outward against the drum.
Direct Caliper Force
Disc actuators push directly into the caliper mechanism, resulting in faster response times and perfectly even pad wear.
Where Air Disc Brake Actuators Are Used
Air disc brake actuators are used on commercial vehicles with factory-installed air disc brake systems, most commonly on newer trucks, transit buses, and high-duty vocational vehicles.
Heavy-Duty Trucks
Modern Class 7–8 trucks with factory air disc brake systems. Front and rear axle configurations.
Commercial Trailers
Air disc brake trailer axles. Provides consistent braking force even under heavy loads.
Transit & School Buses
City, school, and intercity buses. Low-noise, high-cycle operation for frequent stop-and-go routes.
Severe-Duty Vehicles
Refuse trucks, mining equipment, and off-highway vehicles where heat and cycle counts demand disc performance.
What Makes BRC Air Disc Brake Actuators Reliable
HOT Technology
Proprietary internal mechanism maintains clamping force as friction builds, the leading cause of brake fade in standard actuators.
Sealed Housing Construction
Internal bore sealed against dust, water, and contaminants, critical for long-term actuator life.
High-Strength Return Spring
Reliable return-to-rest function prevents drag and unnecessary pad wear between stops.
Direct Caliper Compatibility
Matches Bendix ADB22X, Meritor EX+, and WABCO PAN/MAX caliper mounting dimensions for drop-in replacement.
