Brake Chamber Manufacturing Process: From Raw Steel to Export-Ready

Inside our Zhejiang, China factory, every BRC brake chamber moves through a controlled four-stage production flow: stamping, welding, e-coating, and automated assembly.

Production Overview

Inside Our Brake Chamber Production Process

Our vertically integrated brake chamber production lines are built around one principle: consistency. Every unit is engineered to perform identically to the million chambers manufactured before it. Here are the four controlled stages that make it possible.

See the raw materials we start with

Step 01

Brake Chamber Stamping & Forming

Every 8-gauge steel brake chamber housing begins in heavy-tonnage hydraulic presses. Automated stamping ensures exact tolerances and forms the rigid foundation required to withstand torsional forces, pressure cycling, and road impact stress.

Quality Control

Incoming steel is verified for grade, thickness, and hardness before entering the press line.

See how we source raw materials

Step 02

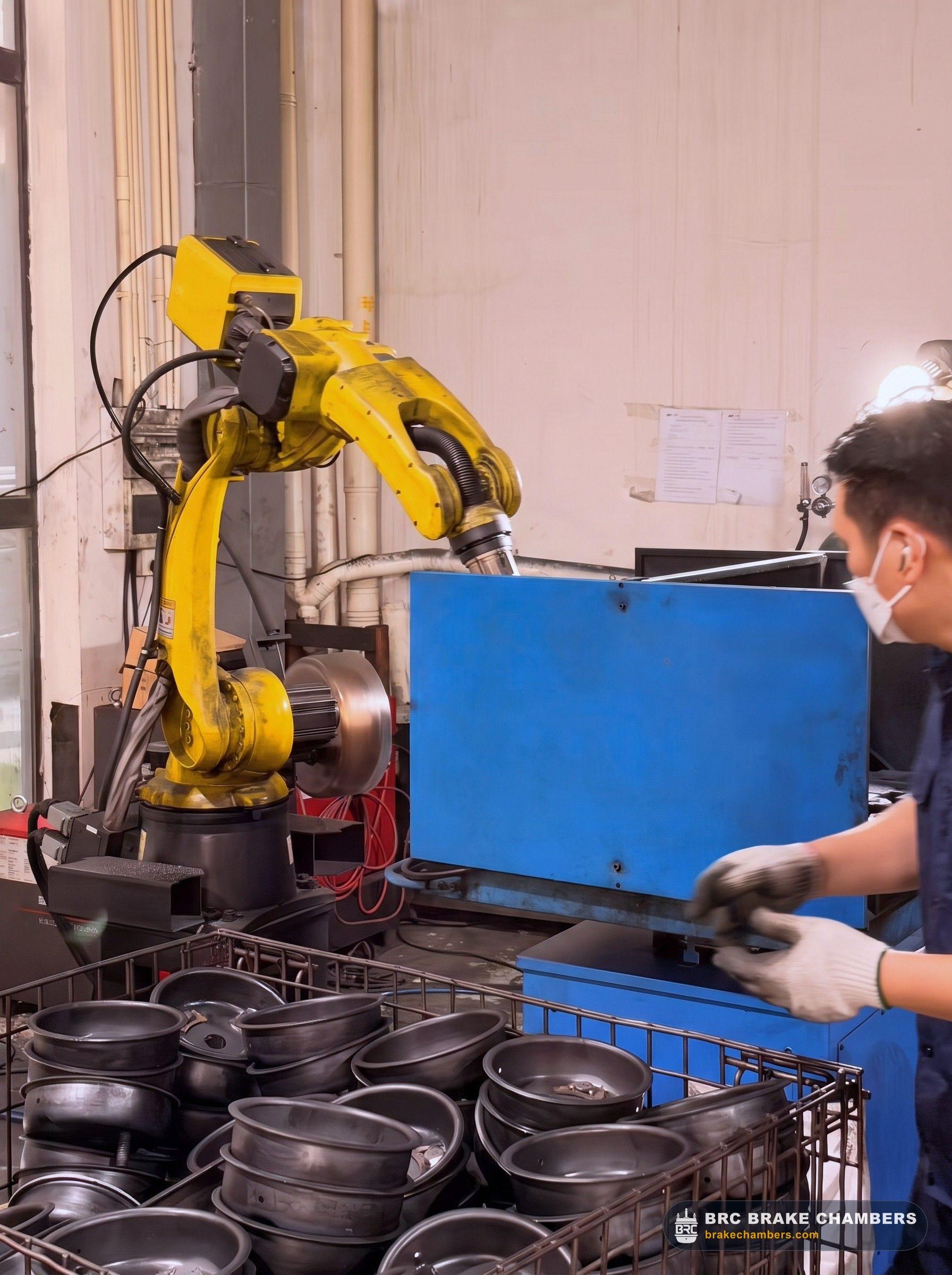

Robotic Welding of Brake Chamber Housings

Critical structural welds on every BRC brake chamber are performed by 6-axis robotic welding arms. Continuous, deep-penetration seams run around the housing to ensure structural integrity and burst resistance across millions of pressure cycles.

Quality Control

Every weld is visually inspected and pressure-tested before moving to the next stage.

Step 03

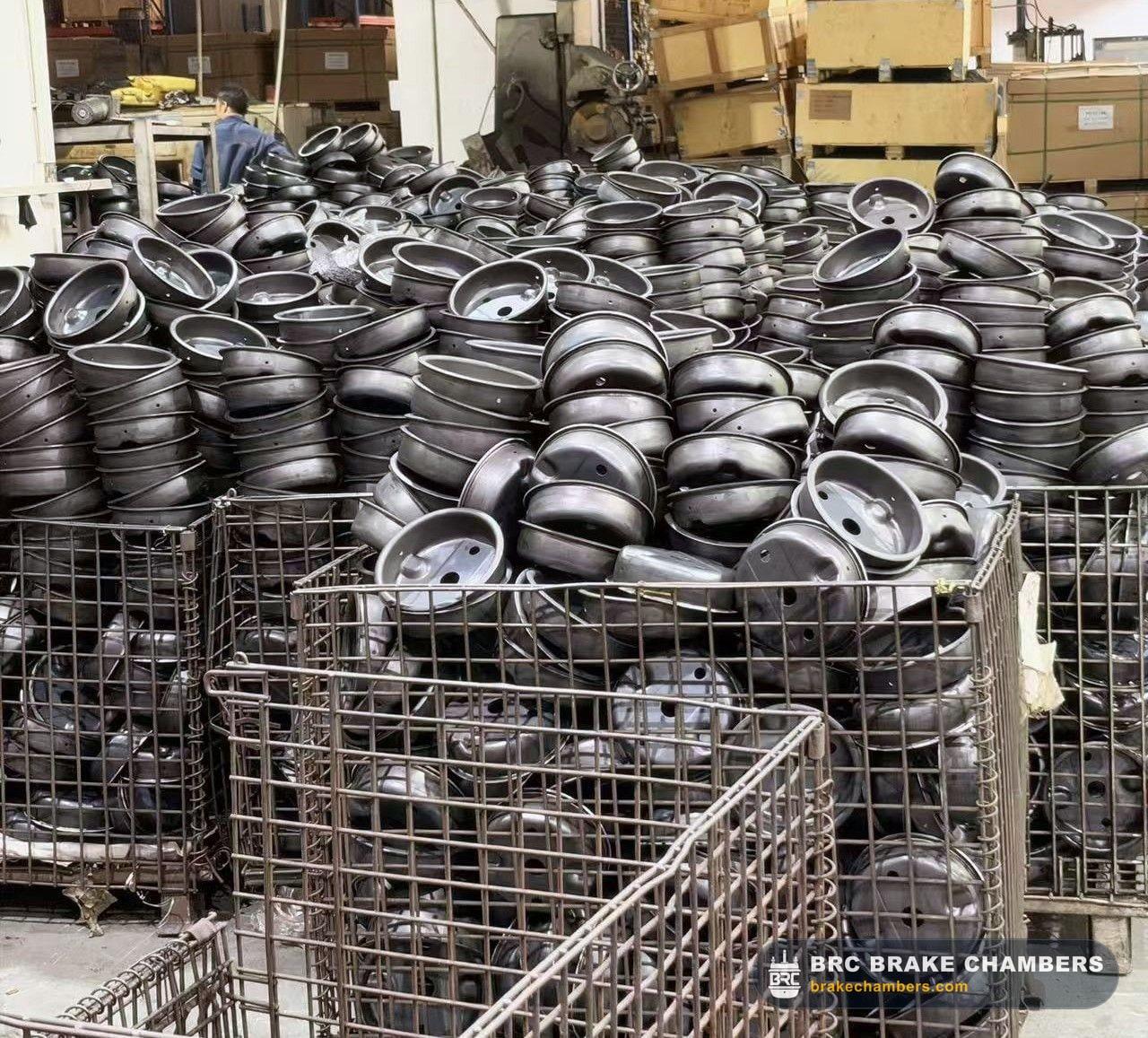

Brake Chamber E-Coating & Epoxy Finishing

Every steel component, including internal return springs, passes through a multi-stage cathodic electrodeposition (e-coat) process, followed by a heavy epoxy finish. This dual-layer corrosion defense prevents the internal rust flaking that damages center seals and shortens chamber life.

Quality Control

Coating thickness is measured and logged for every production batch.

Step 04

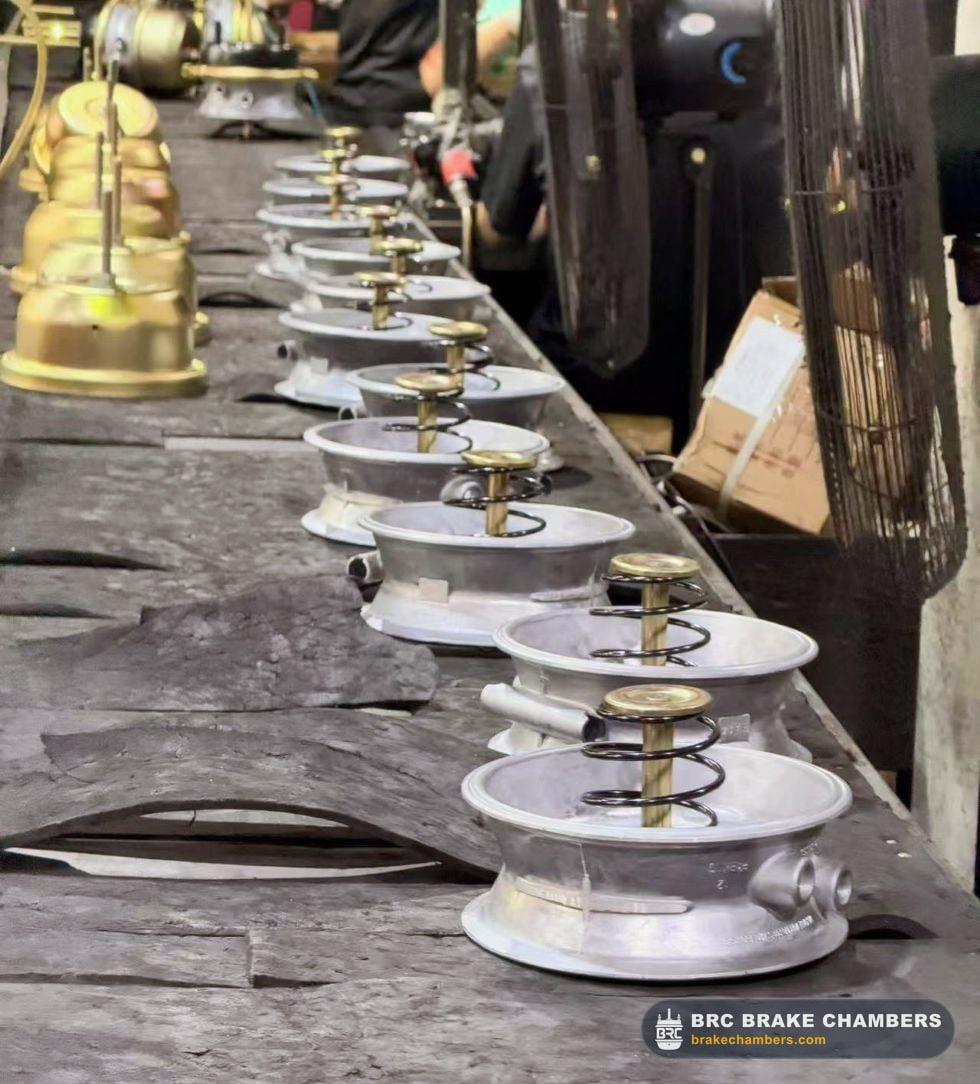

Brake Chamber Automated Assembly

Every brake chamber is assembled in a clean-room environment using torque-controlled fastening systems. Neoprene diaphragms and machined push-rods are aligned to deliver consistent linear force across the full stroke, without binding, hesitation, or air loss.

Quality Control

Every assembled chamber is 100% pneumatic leak-tested before packaging.

See quality assurance testing

Production Capacity

Brake Chamber Production at Scale

Our automated assembly lines scale to meet container-level demand. Whether you need 500 units for a pilot order or 100,000+ units for annual distribution, BRC delivers consistent quality at factory-direct pricing.

4 Controlled Stages

Every unit flows through stamping, welding, e-coating, and assembly.

100% Pneumatic Testing

Zero defects. Every chamber is pressure-tested at the end of the line.

500-Unit Minimum

Low pilot MOQ allows distributors to validate quality before scaling.

100,000+ Unit Scale

Annual production programs supported by dedicated manufacturing cells.

View High-Volume Orders

See the Next Stage

Where Does Your Brake Chamber Go After Production?

Every BRC brake chamber is tested, packaged, and prepared for export before it leaves our factory. See how we verify quality and package for international shipping.

Explore Quality Assurance View Shipping & Logistics
